What Is the Ideal Size for Casement Window Sashes?

Don’t Only Focus on Cavity Structure — Check These Critical Points

Have you ever wondered what the ideal size is for casement window sashes? National building codes do not specify a maximum limit for sash area directly. Instead, standards focus on air permeability, water tightness, wind resistance, hardware service life, opening force and other performance indicators.

Even so, casement sashes should not be oversized. Extra-large sashes are heavy and hard to operate. Over time, they will sag under their own weight.

For casement sashes: width should neither be too wide nor too narrow. The recommended standard width is around 700mm, with a height of roughly 1400mm for balanced aesthetics. Final dimensions can be adjusted according to your actual opening size.

Risks of oversized window sashes

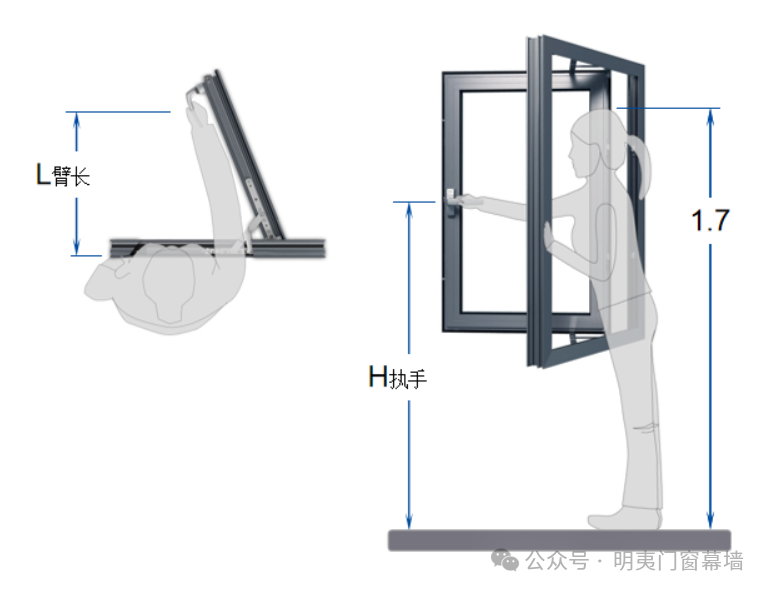

Oversized sashes put heavy load on hardware and cause deformation. They also bring safety risks in daily use. For outward-opening casement windows, users need to stretch out and lean forward to open the sash. Large outward sashes carry severe safety hazards: loss of balance may lead to dangerous falls. Closing big sashes also requires greater force, making operation difficult for the elderly and children.

When choosing outward casement or sliding windows, do not only look at glass area. Below are key factors you need to consider:

1. Glass size should not be excessive

Glass is far less safe than solid walls. Strong winds, earthquakes, material aging, corrosion or manufacturing defects can create major safety risks for home windows, floor-to-ceiling glass and balcony enclosures. Poor-quality glass may shatter under extreme weather and damage the whole frame, threatening property and personal safety.

Always select 3C-certified insulated tempered glass. Laminated glass is another popular option. When selecting glass, verify the glass brand, thickness, color consistency and light transmittance.

The larger the single glass panel, the higher the pressure on the profile structure, and the greater the chance of window vibration. Larger floor-to-ceiling glass must use thicker, stronger glass to meet wind load requirements.

Reference guide for fixed glass panel:

  • ≤2.5㎡: 5mm glass

  • 2.5㎡ ~ 3.6㎡: minimum 6mm glass

  • 3.6㎡ ~ 6㎡: 8mm glass

  • 6 ~ 8㎡: 10mm glass

For oversized glass projects, always consult professional window manufacturers for advice.

Glass glazing bead is another easily overlooked detail. Larger glass panels require thicker, stronger glazing beads to secure glass under heavy wind and rain. Closed glazing beads are preferred. Closed beads resist high wind pressure and reduce the risk of bead detachment. The glazing bead holds glass firmly to ensure overall stability after installation.

2. Pay close attention to mullion connection

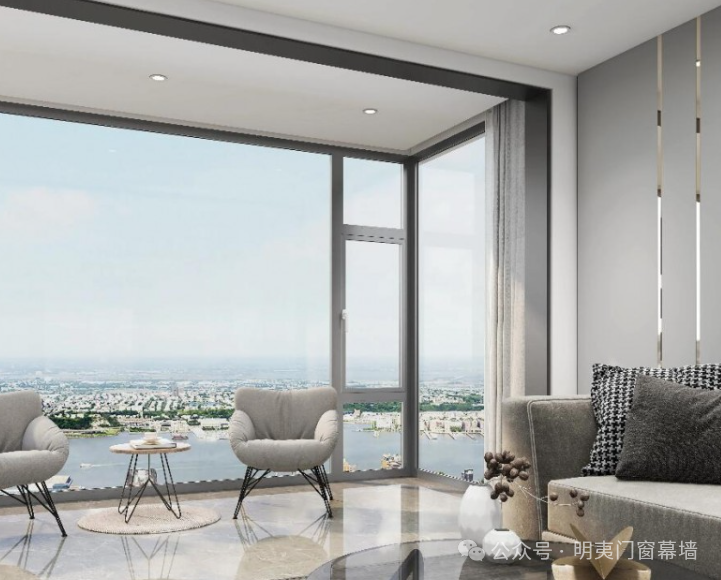

Floor-to-ceiling large glass windows are increasingly popular. Bigger windows demand stronger wind resistance. The mullion is the core component that strengthens the whole window against wind loads. Cases of entire windows blown away during typhoons are not uncommon.

Generally, windows over 1.8m tall need reinforced mullions. T-joint connections for mullions must use dedicated connecting fittings. Direct screw-only T-joints are NOT recommended for high-rise locations or coastal typhoon zones.

In high-rise windy areas, weak mullion connections lead to severe shaking and even sash detachment during strong winds. In coastal typhoon regions, poor mullion joints cannot withstand typhoon force.

Besides frame strength, installation stability within the wall opening is critical. Proper installation methods, strict workmanship and high-durability anchors are essential. Poor installation creates gaps between frame and opening, allowing rainwater penetration that shortens service life and weakens safety. Low-quality anchors will loosen and shift over time, creating hidden hazards.

3. Prevent sash fall risks

When talking about outward casement windows, sash falling is the top safety concern. Common causes:

  1. In coastal typhoon zones, outward sashes hang outside the building and swing violently under wind, which may lead to detachment.

  2. Low-quality window products with cut corners, insufficient profile wall thickness or inferior raw materials.

  3. Long service life causes hardware aging. Weak load-bearing hardware or rusted stays lose supporting capacity.

Our recommendation: Choose sashes fitted with anti-fall cables, aluminum profiles with wall thickness ≥1.8mm (national standard), and premium branded hardware.
